Sanitary Nylon Liquid Filtration Bag 450-500 Mesh Filtration Accuracy for Industrial Filtration Needs

condition : New

weight (kg) : 0.5

place of origin : Shanghai, China

brand name : YATE

warranty : Unavailable

Product name : liquid filter bag

Application : Liquild Filtration

Type : 1# 2# 3# 4# 5#

Material : Nylon

Usage : Liquild Filter

Size : 180*810mm

Name : Nylon liquid filter bag

Working Pressure : 0.8 MPa

Min. Filtration Precision : 20-500 mesh

Filter Bag Material : Nylon

MOQ : 1000 sets

Price : $2.55-2.70/sets

Contact Now

Specifications Data

SAFETY INTRODUCTION

Designed to meet the most demanding needs of food and beverage processing, pharmaceutical and biotechnology industries. This filter bag not only carries the heavy responsibility of filtering purity, but is also a key link in ensuring product safety and improving production efficiency. Complies with food safety standards such as FDA, EU and China GB. The material surface is smooth and not easy to absorb impurities, effectively avoiding secondary contamination of the liquid and ensuring the purity and safety of every drop of liquid.

APPLICATIONS

* Food and beverage industry

* Pharmaceutical and biotechnology industry * Chemical industry

* Wastewater and water treatment industry

* Automobile and machinery industry

* Electronics and semiconductor industry

* Other industries such as chemical fiber,papermaking, petroleum, metallurgy, textile, coating and paint

Products Details

Filter bag type	Filter material	Diameter mm	Length mm	Maximum discharge m³/h	Filter area m2	Volume L	Precision (mesh)	Pocket ring	Techn-ology
1#	Nylon	180	430	20	0.24	8	20-500	Plastic ring	Sewing
2#	Nylon	180	810	0.48	0.48	17	20-500	Plastic ring	Sewing
3#	Nylon	105	230	0.08	0.08	1.3	20-500	Plastic ring	Sewing
4#	Nylon	105	380	0.16	0.16	2.6	20-500	Plastic ring	Sewing
5#	Nylon	150	560	0.24	0.24	8	20-500	Plastic ring	Sewing

Sanitary Nylon Liquid Filtration Bag 450-500 Mesh Filtration Accuracy for Industrial Filtration Needs

Filter Material Performance Table

product Name	strong acid	weak acid	strong alkali	weak base	oils and fats	aromatic	alcohol ethers	organic solvent
polyester (PE)		√			√	√	√	√
polypropylene (PP)	√	√	√	√	√	√		√
nylon (NMO)			√		√	√	√	√
teflonethene (PTFE)	√	√	√	√	√	√	√	√

Product Description

We use advanced production technology and sophisticated equipment, and every process is strictly controlled. From material selection to production and packaging, we strive for perfection in every link to ensure that every detail of the filter bag meets high quality requirements. This persistent pursuit of technology makes our filter bags perform well in both filtration efficiency and durability.

Hot melt process and edge sewing

Our liquid filter bags use hot melt technology and edge sewing technology. Hot melt technology achieves seamless connection between filter media and filter bag frame through a precisely controlled heating and pressure system. Edge sewing technology significantly improves the sealing and structural strength of the filter bag, ensuring the absolute purity and safety of the filtration process.

High-efficiency filtration, excellent performance

By selecting high-quality filter materials and combining precise filter hole design, our liquid filter bags can efficiently intercept tiny particles, suspended matter and harmful impurities in the liquid, ensuring that the filtered liquid reaches extremely high purity and clarity. At the same time, the optimized filter structure and material selection enable the filter bags to have a longer service life and lower replacement frequency while maintaining high-efficiency filtration, bringing lower maintenance costs and higher production efficiency to your production line.

Stable, reliable and adaptable

After strict quality control and performance testing, our liquid filter bags have demonstrated excellent stability and reliability. Whether in high pressure, high temperature or corrosive liquid environments, they can maintain stable filtration performance to ensure continuous and stable operation of the production line. In addition, we also provide filter bag options of various specifications and materials to meet the diverse needs of different industries and application scenarios.

Professional customization, considerate service

In order to meet the special needs of different customers, we provide professional customization services. Whether it is special size requirements, filtration accuracy adjustment or special process treatment, our professional team can provide you with a one-to-one solution. We promise to meet your every need with the fastest speed, the best quality and the most considerate service.

Environmentally friendly materials, green production

We always adhere to the concept of green development, select environmentally friendly filter materials and production processes, and are committed to reducing the impact on the environment. Our liquid filter bag materials are non-toxic and harmless, recyclable and reusable, and meet international environmental standards and industry requirements. Choosing our products means choosing a responsibility and contribution to the environment.

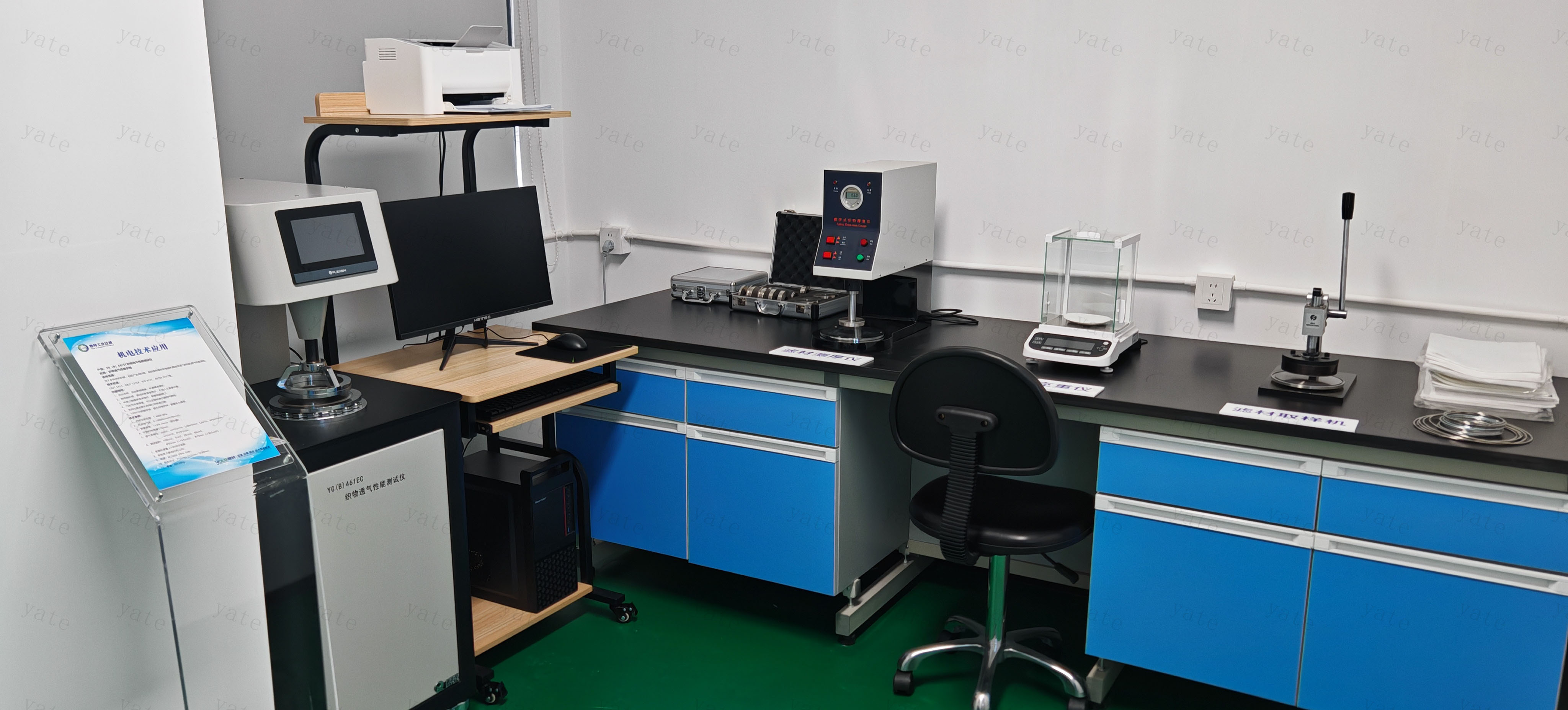

Laboratory Testing Equipment

Laboratory testing equipment From left to right:

1. Filter material air permeability testing equipment

2. Filter material thickness testing equipment

3. Filter material weight measuring equipment

4. Filter material sampling machine

Laboratory testing equipment From left to right:

1. Filter efficiency test equipment

2. Filter material microscope

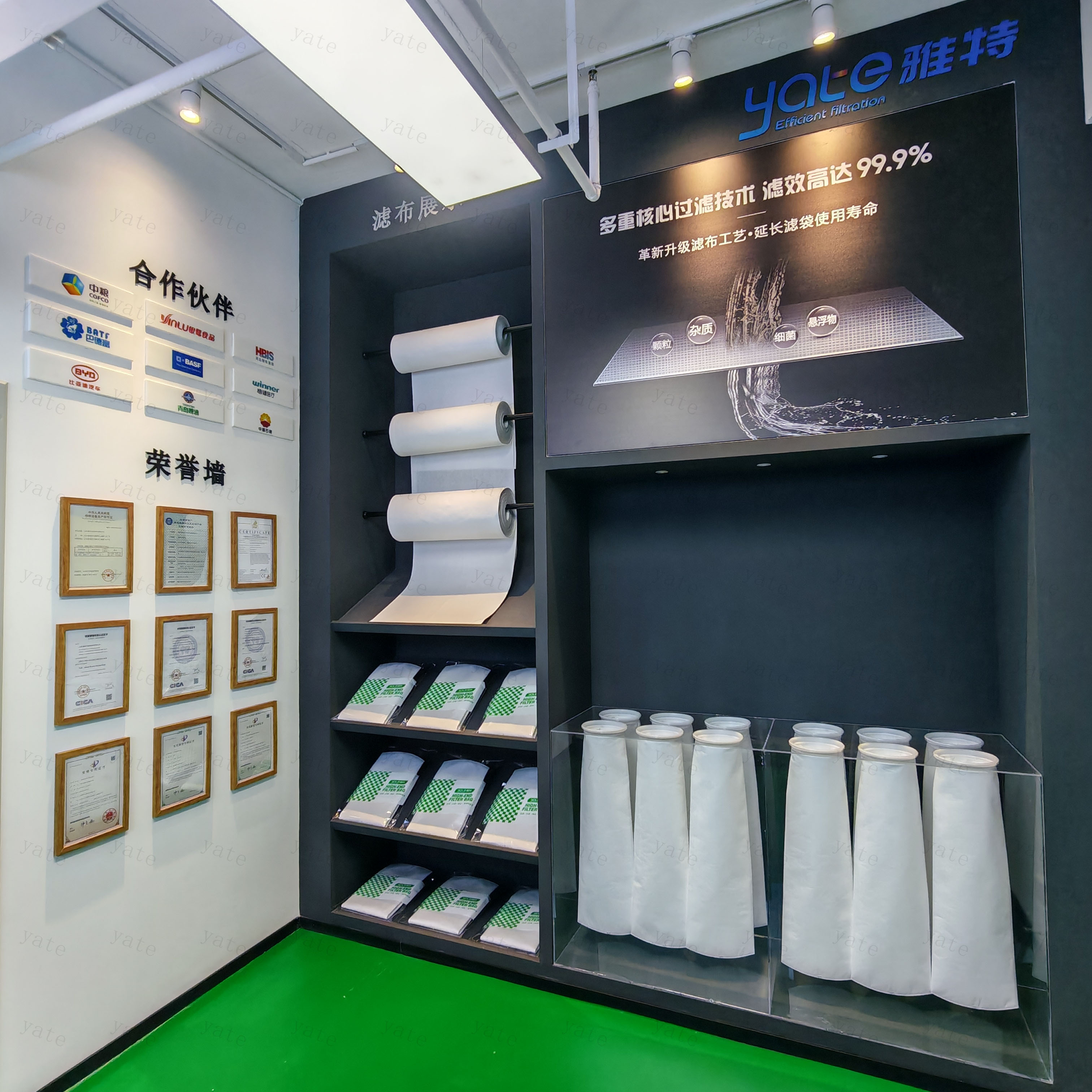

Company Profile, Showroom and Certificates
